Visible and Near-IR emitters

VIS and NIR emitters

High-performance laser diodes spanning visible red to near-infrared wavelengths, including compact 650 nm sources for pointing and alignment, plus narrow-linewidth 1060/1064 nm DFB and cost-effective Fabry-Perot options.

List of Services

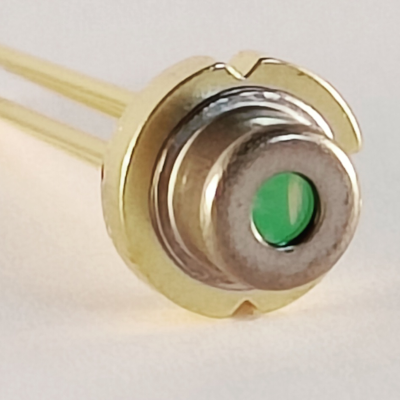

    1550nm FP laser diode  in a flat window TO-56


    Features:

    • 1550nm wavelength
    • built-in monitor PD
    • 5mW CW output


    940nm laser pump with symmetrised output beam in TO-CAN


    Features:

    • High output power of 5W
    • TE polarised beam
    • 90um emission with followed by a fast axis collimator (FAC)


    1064nm DFB laser diode in TO9


    Features:

    • single mode DFB structure
    • 120mW optical power


    1064nm high power laser diode chip on ceramic


    Features:

    • 1064nm central wavelength
    • High output power 10W
    • TE polarised beam



    1064nm FP laser diode in a TO-CAN


    Features:

    • 1064nm central wavelength
    • 100 mW optical power output
    • single mode output


    638nm laser diode in TO-CAN for laser projection


    Features:

    • 638nm central wavelength
    • 2.1 W optical power output


    650nm fibre pigtailed laser diode for laser alignment


    Features:

    • 658nm central wavelength
    • high efficiency coupling to an SM fibre
